DYSON CLUTCH MODELS DC04.
|
 |
DYSON HOSE FITS CLUTCH TYPE DCO4 VACUUM CLEANERS, DOES NOT FIT LIME /SILVER MACHINES
NONE GENUINE HOSE
|
|
DCO4 HOSES MADE BY DYSON PLEASE NOTE SILVER/LIME IS NONE CLUTCH TYPE THIS MEANS IT AS NO BIG KNOB THAT YOU TURN TO STOP THE ROLLER GOING ROUND THE CLUTCH TYPE DCO4 HOSE WILL NOT FIT ON THE LIME/SILVER MACHINES THE HANDLE WILL NOT FIT INTO HOSE IF NOT SURE OF IT, EMAIL US ABOUT IT ! SEE LOWER PRICED HOSE ABOVE #[ GENIUNE HOSE IS IN GREY ONLY]#
VIEW IMAGE IN MORE DETAIL
|
|

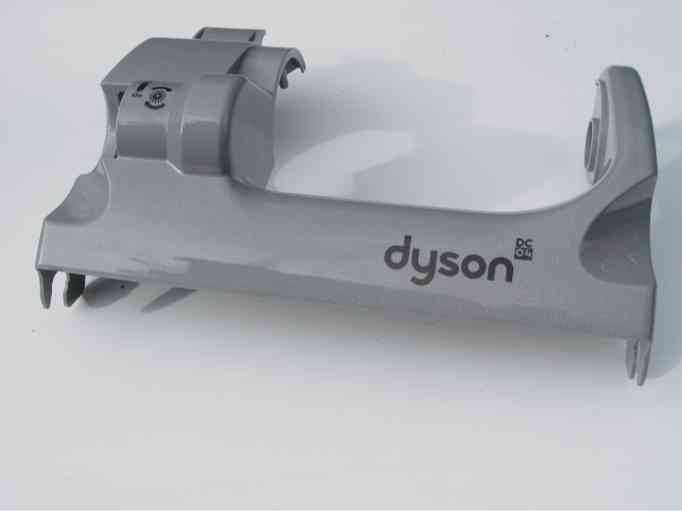

DC04 CLEANER HEAD ASSY Clutch type please note does not fit Silver Lime
Larger Image
|
|
|
|
Mattress tool
Removes dirt and dust mites from mattresses and upholstery.
Wide head and lightweight design for easy cleaning around the home
|
|
DYSON DCO4 DUSTING BRUSH (GREY )
|
|
DYSON BELTS , PACKET OF 2
FITS DCO7, DCO4, NONE CLUTCH MODELS
DC04
SILVER LIME
SINGLE BELT MODELS
more info
|
|

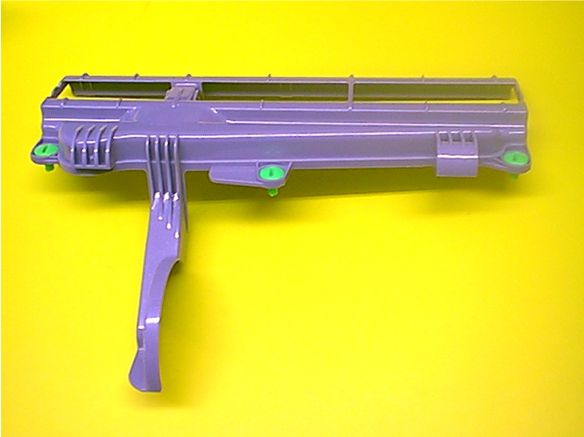

DYSON DCO4 SOLEPLATE NONE CLUTCH TYPE, IN LAYMAN TERMS, THIS MEANS THAT IT DOES NOT HAVE A LARGE KNOB ON THE SIDE OF THE MACHINE, THAT YOU CAN TURN TO STOP THE ROLLER FROM GOING ROUND.HOPE THIS HELPS
VIEW IN MORE DETAIL
|
|
DC04 UPPER FILTER BLUE/WHITE WASHABLE DYSON DC04
|
|
HEPA POST MOTOR FILTER.DYSON...@.DC0ABSOLUTE
.DC04PURPLE/LIME.DC04DESTIJL.
|
|
DC04 H LEVEL LOWER FILTER - WHITE DYSON
Price: £11.63 (Including VAT at 17.5%)
DC04 H LEVEL LOWER FILTER - WHITE
DC04 THIS IS NOW OBSOLETE USE LOWER FILTER PAD BELOW
|
|
DYSON DC04 LOWER FILTER PAD
|
|
DYSON WHEELS FITS DCO4 COMES WITH CLIPS
|
|
DYSON DC04 MOTOR YDK TYPE
LOWER PRICED ALTERNATIVE
NEXT DAY DELIVERY ON THIS PART[ UK ONLY NEXT DAY]
|
|
DCO4 MOTOR.. NEW LOWER PRICED MOTORS
NEXT DAY DELIVERY ON THIS PART
|
|
DYSON DCO4 AMETEX FITS SILVER AND LIME,
NONE CLUTCH MODELS, MAKE SURE OF THE MOTOR, TWO TYPES FITTED IN THE DCO4s, ONE AS AMETEX, AND ONE IS YDK STAMPED ON THE MOTOR, SEE ABOVE IF NOT SURE ABOUT IT EMAIL US WITH IT ...CHRIS NEW LOWER PRICE
|
|
DCO4 ARMATURE FITS CLUTCH MODELS
THIS IS A QUALTEX PRODUCT SEE ALSO CARBONS CAR 94
|
|
DCO4 ARMATURE FITS NONE CLUTCH MODELS
THIS IS A QUALTEX PRODUCT SEE ALSO CARBONS CAR 94
|
|
DYSON MOTOR BRUSHES FITS YDK TYPE MOTORS BRUSHES( NOTE USE OLD TERMINALS)
|
|
dco4 belts made by dyson pkt of 2
To
replace the belts on the dco4 clutch model
1 remove brush roll
2 remove the control knob,
this can be done by pressing down the hidden locating catches ,one is located adjacent, to and inline with the large dot on the control knob, and the pressing can be achieved by inserting a thin screwdriver blade into the
groove next to the dot,this releases the top catch,the other catch can be located directly opposite on the underside,again insert the screwdriver as detailed above, the knob can be completely removed, and now the clutch can be removed and dismantled with standard engineering tools, great care must
be taken to replace all components in order as they came off this will ease re-assembly, good luck, Chris
view image in more detail
|
|
DYSON BELTS MADE BY DYSON, PACKET OF 2 FITS DCO7, DCO4, NONE CLUTCH MODELS ( SINGLE BELT MODELS, DOES NOT HAVE A KNOB THAT YOU CAN TURN TO STOP ROLLER GOING ROUND ,IF NOT SURE ABOUT IT EMAIL US WITH IT! ....CHRIS SAME AS BELOW BUT MADE BY DYSON
|
|
|
|
|
|

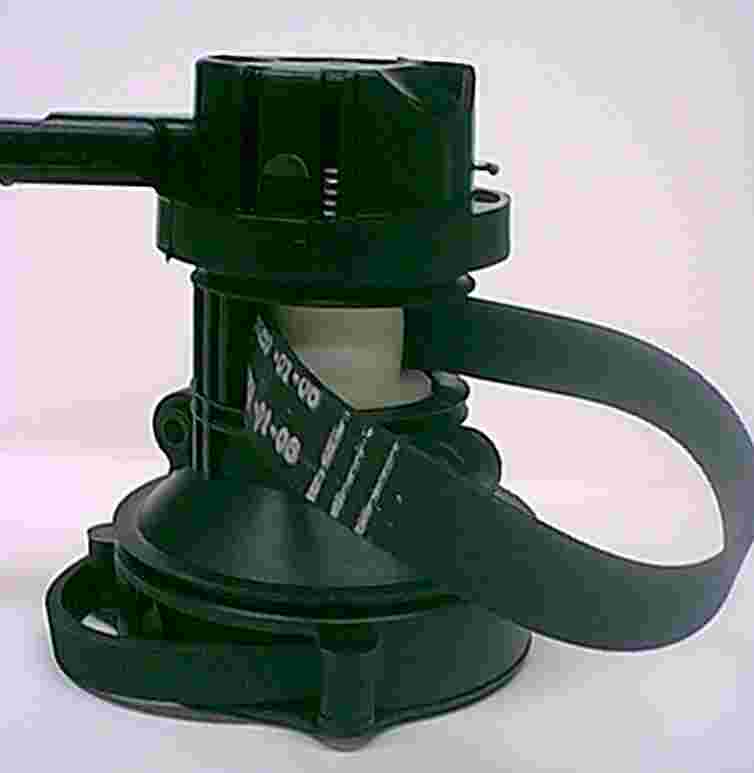

DCO4/07 CLUTCH ACTUATOR KNOB, SEE ALSO CLUTCH ASSY ABOVE
|
|
DC04 SWITCH KNOB PEOPLE BREAK THIS WHEN TRYING TO REPLACE THE FLEX, { YELLOW ONLY IN STOCK}
|
|
DCO4 SWITCH HOUSING, SWITCH ABOVE FITS IN,
A COMMON THING PEOPLE DAMAGE WHEN REWIRING THE FLEX
|
|
|
|
DYSON DC04 FLEX ASSEMBLY COMES NOW COMPLETE WITH INSTRUCTIONS
CAN USE MIS106 BELOW .. CHRIS
|
|
DYSON SWITCH KNOB REMOVAL TOOL
NOW WITH INSTRUCTONS ON HOW TO USE IT
|
|
FLEX ASSY COMES WITH PLUG AND SOLDERED ENDS
GREY AND 7 METERS LONG FITS MOST MAKES
PLEASE NOTE THIS AS PLAIN ENDS, FIT YOUR OWN SPADES TAGS
|
|
FITS MOST DYSONS 4.6MM (SINGLE) FITS FLEX MIS106
|
|
BRUSH ROLL
DC04/07 CLUTCH TYPE
|
|
DCO4 BRUSH ROLL NONE CLUTCH (ONLY AS ONE BELT)
|
|
|
|
|
|
DC04 SILVER AND LIME T
HIS WILL NOT FIT ANY OTHER DCO4 WHICH IS NOT SILVER AND LIME
SEE SECOND HAND BELOW
|
|
+LOOK +SECOND HAND
DC04 SILVER AND LIME T
HIS WILL NOT FIT ANY OTHER DCO4 WHICH IS NOT SILVER AND LIME
|
|
